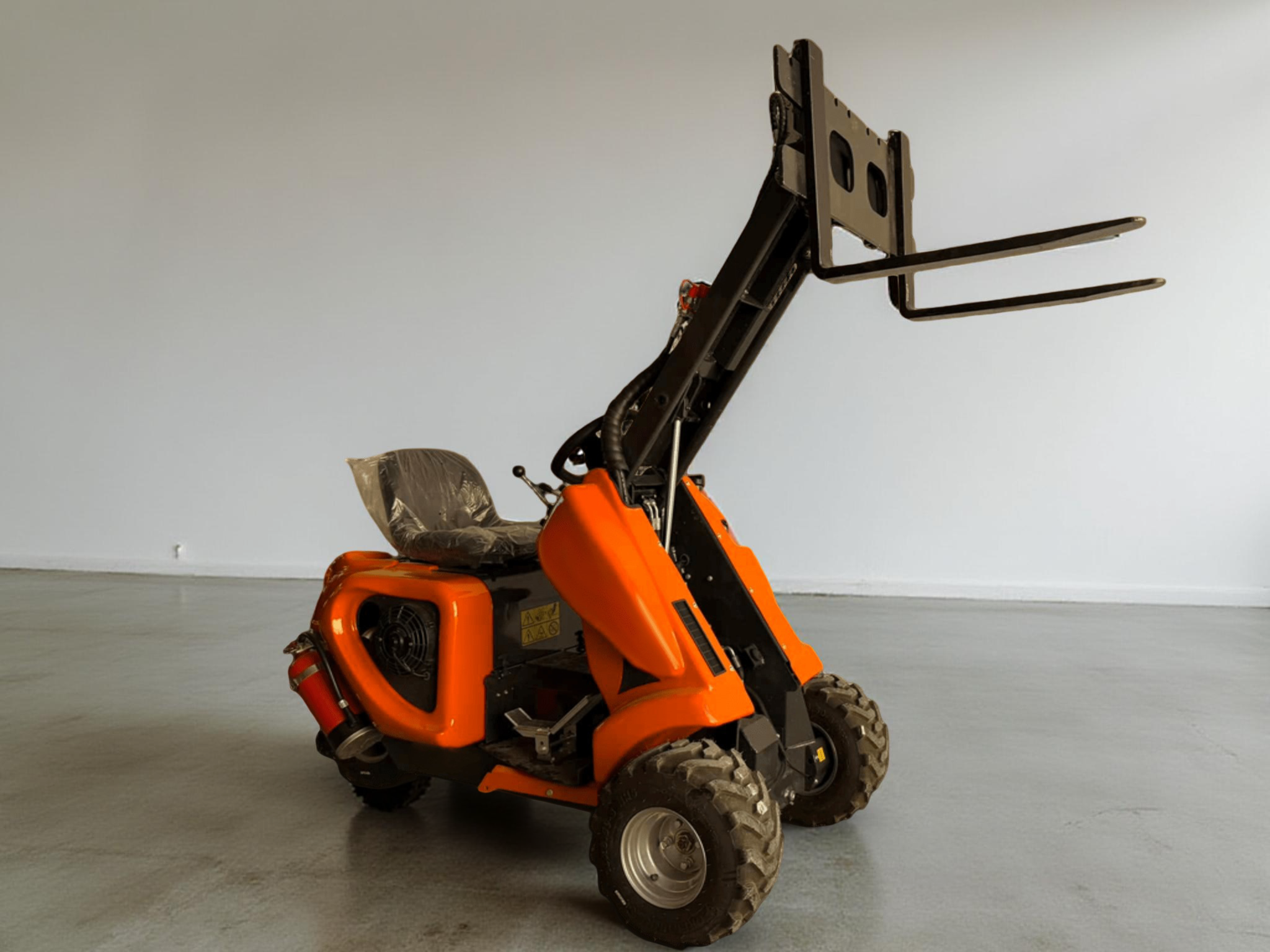

The AFA ROCK 16K multi functional loader is the solution for narrow spaces where you need power. Powered by RATO engine it’s ideal for horse owners and livestock farms making everyday tasks on the farm easy.
More than 20+ attachments available — from snow tools to forks, buckets, mowers and more — so you can adapt the machine to every season and job.
This compact mini loader has 350 kg lifting capacity and 1,6 m lifting height. With a machine weight of just 500 kg and a width 995 mm it easily navigates in tight spaces.
ENGINE POWER
22,5 HP
LIFT CAPACITY
350 kg
SPEED
15km/h
LIFT HEIGHT
1.6 m
SPECIFICATIONS
| Model | AFA-ROCK 16K |
|---|---|
| Length | 1855 mm |
| Width | 995 mm |
| Height | 1309 mm |
| Operating weight | 500 kg |
| Tipping load,max | 400 kg | Std. wheels |
18x9.50-8 |
| Transmission, drive | Hydrostatic |
| Drive speed | 0-15km/h |
| Hydraulic flow | 29l/min 180 bar |
| Lift capacity max | 350 kg |
| Max lifting height | 1,6 m |
| Engine type and make | Rato R740D |
| Emission standards | EU Stage V&EPA Tier 4 Final |
| Engine output | 16,8 kW / 22,5 HP |
| Fuel | Gasoline |
